Timm's BMW E32 730i 1993             V8 Quad-Cam 32-Valve 3Ltr

This car is now sold and was maintained with the help of

E38 and E32 Repairs and Information

Sports model      Calypso Red      Shadowline

Timm's BMW E32 7-Series 730i V8 M60

This was my first BMW 7-Series, a 1993 V8 730i Sports model. It had factory-fitted Sports seats, Shadowline trim and Cream Bilstein shocks.

Timm's BMW E32 7-Series 730i V8 M60

The 730i was an excellent car, I couldn't have had a better introduction to the BMW 7-Series. It wasn't without its faults and suffered from the usual complaints that the M60 V8's commonly had. The PCV valve popped, there were pools of oil in the spark-plug wells and the ECU failed on one of the eight coil outputs. All these faults were easy to repair but the steering slowly deteriorated to a point where a front-end rebuild was necessary. Replacement of the upper-arms helped but it was never great and used to tramline quite badly.

However, the fact that the engine suffered from the usual PCV valve failure was a good point! At the time of purchase the 'Nikasil Issue' was very well known in that the early 90's V8's could suffer from bore-wear. Nikasil was impregnated into the cylinder walls (no liner was used) during manufacture to harden the surface. Unfortunately the high Sulphur content in some UK petrol supplies broke down the chemical structure leading to premature bore-wear which was shown (most noticeably) by a tick-over that would rock the car. A failed PCV valve caused the same symptoms and that was why so many BMW V8's sold at ridiculously low prices....and this was one of them. After replacing the PCV valve, removing oil from the spark-plug wells and replacing the HT stubs this V8 was as smooth as the day it was made.

Timm's BMW E32 7-Series 730i V8 M60

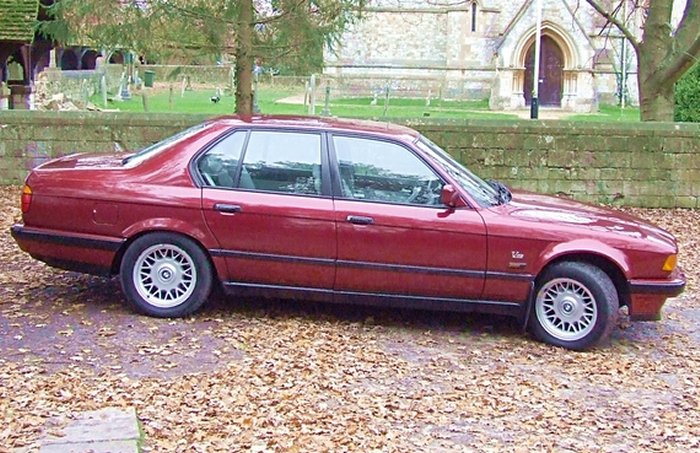

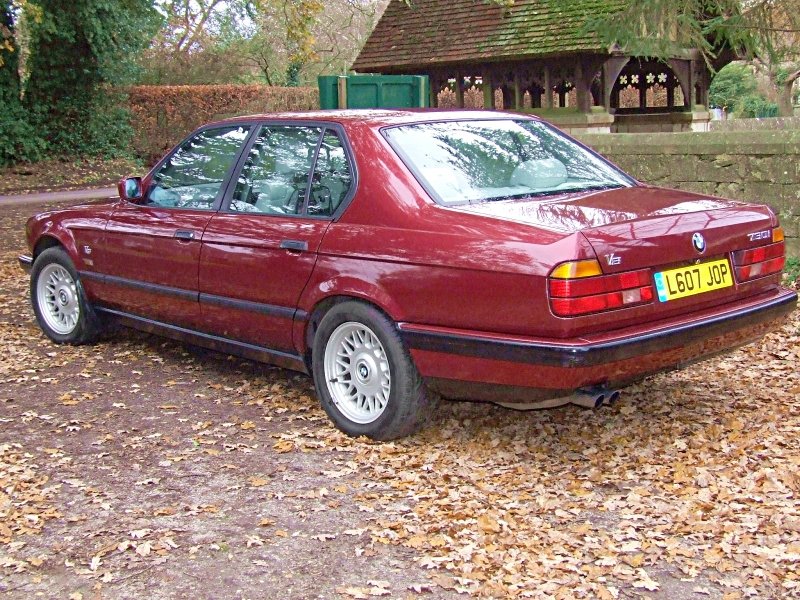

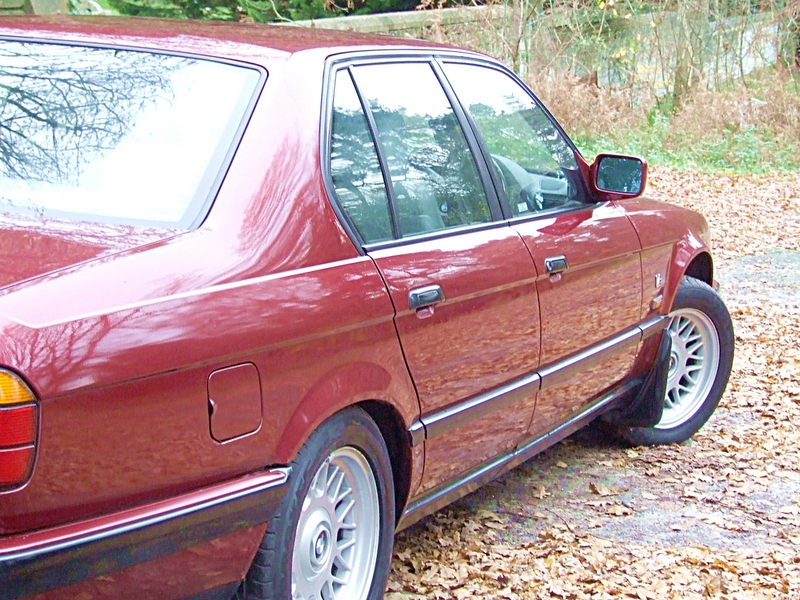

Later problems were rust appearing below the fuel filler and under the rubbing-strips by the rear-wheel arch but as the pictures show (all taken just before it was sold) it was still in excellent condition, especially the interior that was close to perfect. It also suffered from a failing Lambda sensor on one bank that would slowly enrich the mixture to a point where the catalyst would get exceptionally hot! A quick disconnection of the battery would reset the ECU adaptations and off it would go again for another 100 miles.

Timm's BMW E32 7-Series 730i V8 M60

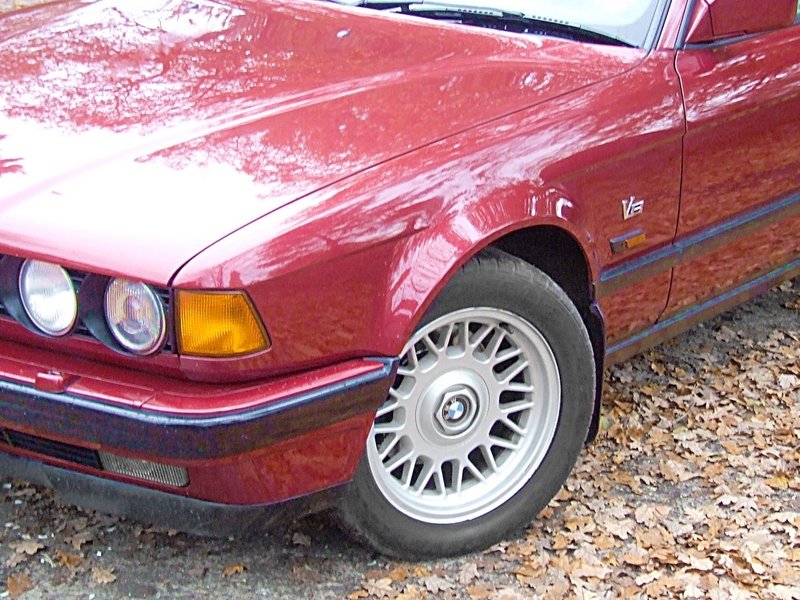

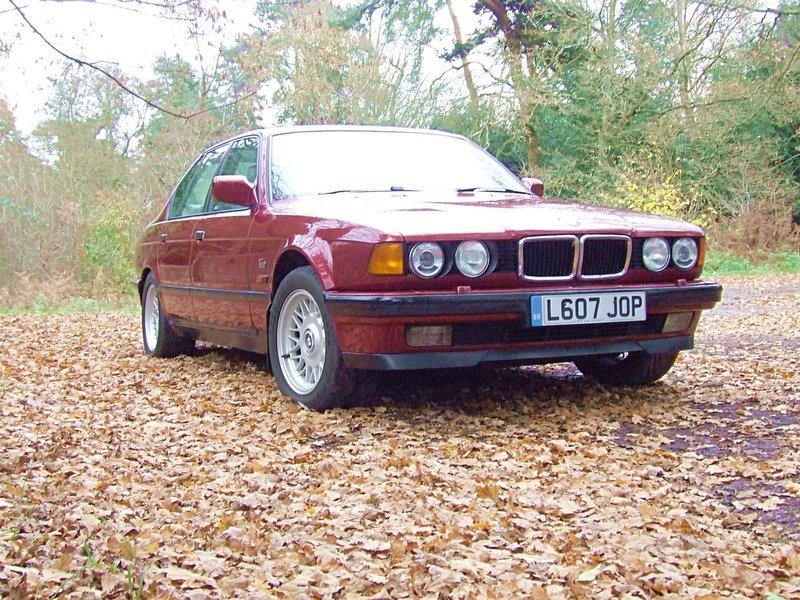

The wheels were 16" Style 8 Alloys from an 8-Series (E31) and suited the car well. The standard 15" Basket-weave alloys look too old-fashioned, larger wheels compromise the suspension on the E32 making the ride harsh and cause the usual wandering which was a 'feature' anyway.

Timm's BMW E32 7-Series 730i V8 M60

One of the common E32 complaints is the headlights, these get dimmer as the car gets older. The cause is two things, the glass fronts which get pitted and the reflectors which get duller with age. The reflectors are made of plastic, the silvering is vacuum-deposited and is very easily destroyed by rubbing. However, they can be revitalised by careful wiping with a solvent on a lint-free cloth. Both the dipped-beam and the fog lights are projectors and cleaning of the lens also helps. The E32 lenses are glass, the E38 (the successor to the E32) have plastic lenses giving much poorer edges to the beam pattern.

Timm's BMW E32 7-Series 730i V8 M60

Here are some of the repairs done to this car that are featured on www.the7seriesregister.co.uk:

Microfilter replacement

Full Disk and Pad replacement

PCV valve replacement

HT stubs replacement

Rocker-cover gasket replacement

Brodie-Brittain Racing Dyno-test, new ECU software installed

Rear Top-Mounts replaced

Steering box adjusted

Centre Prop-Shaft joint replaced

Dipped-Beam units refurbished

Fog-lamps refurbished

ECU repaired (faulty output stage)

Auto-box flush, filter and fluid replaced (Barons BMW)

MAF replacement

A/C regass + Pag oil

Upper control arms replaced + bushes

Rear brake pad replacement

Front callipers replaced

Handbrake pads replaced

Idle-control valve serviced




Timm's BMW E32 7-Series 730i V8 M60Timm's BMW E32 7-Series 730i V8 M60

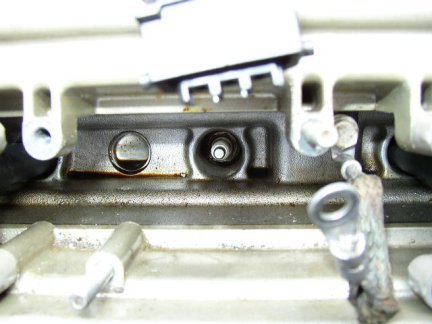

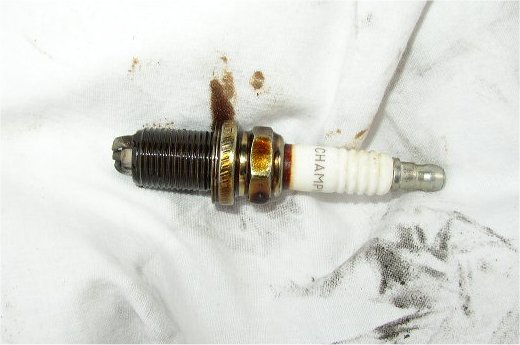

The usual 'Oil down the spark-plug holes' problem


Timm's BMW E32 7-Series 730i V8 M60

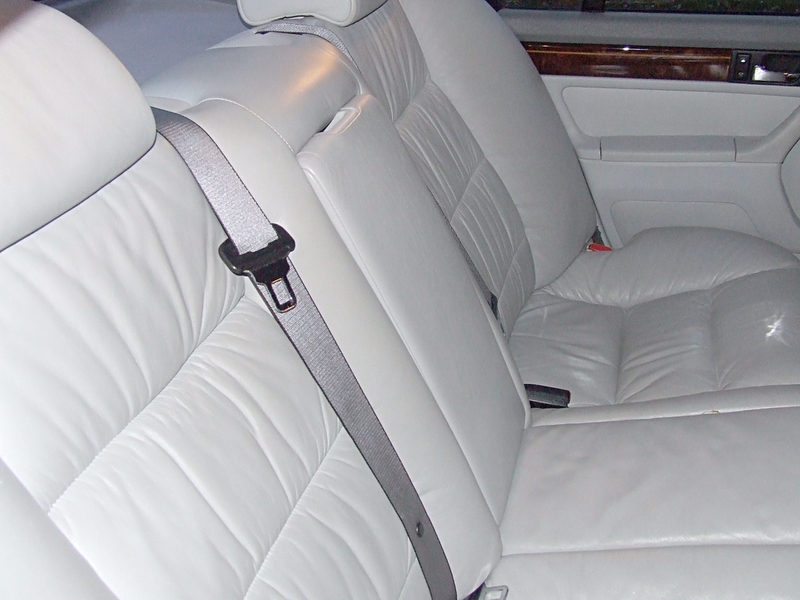

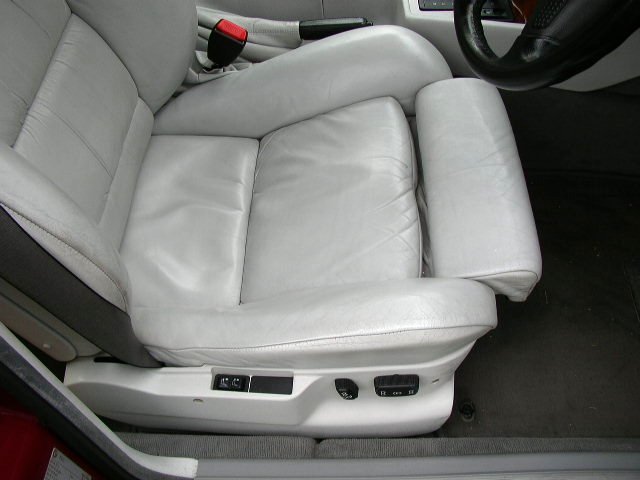

The Sports seats have adjustable thigh supports and additional support for the upper body. They are quite uncomfortable on long drives but give excellent support during cornering



Timm's BMW E32 7-Series 730i V8 M60

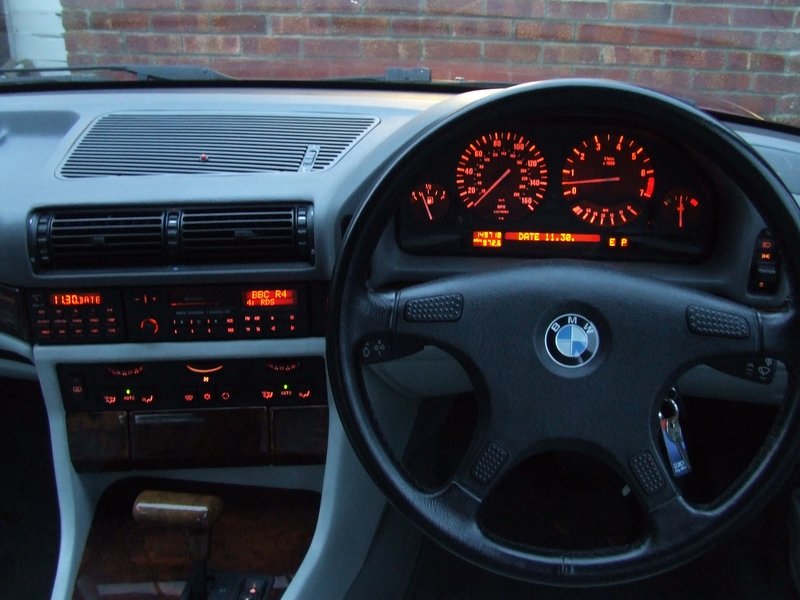

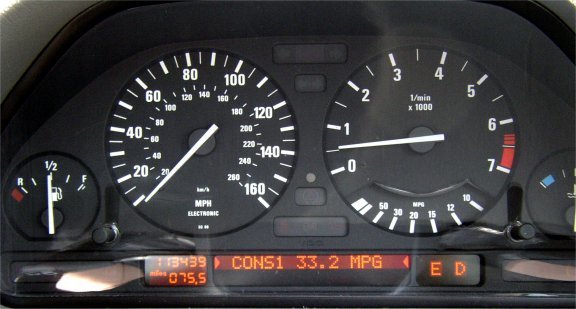

One of the side-effects of having the ECU 'chipped' by Brodie Brittain was an increase in MPG, I used to get at least 33MPG on long A road and Motorway runs. Not bad for a V8 with 230 BHP (218 BHP as standard)


Timm's BMW E32 7-Series 730i V8 M60

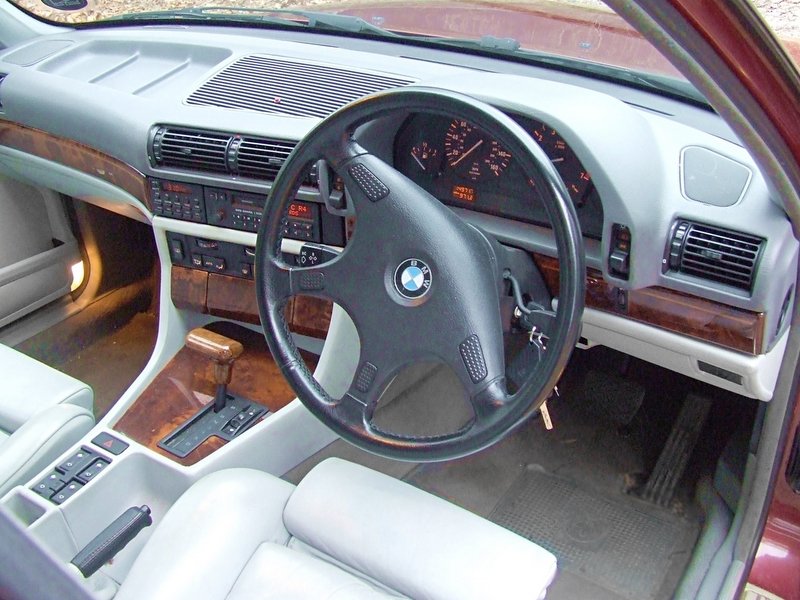

Grey Interior


Timm's BMW E32 7-Series 730i V8 M60

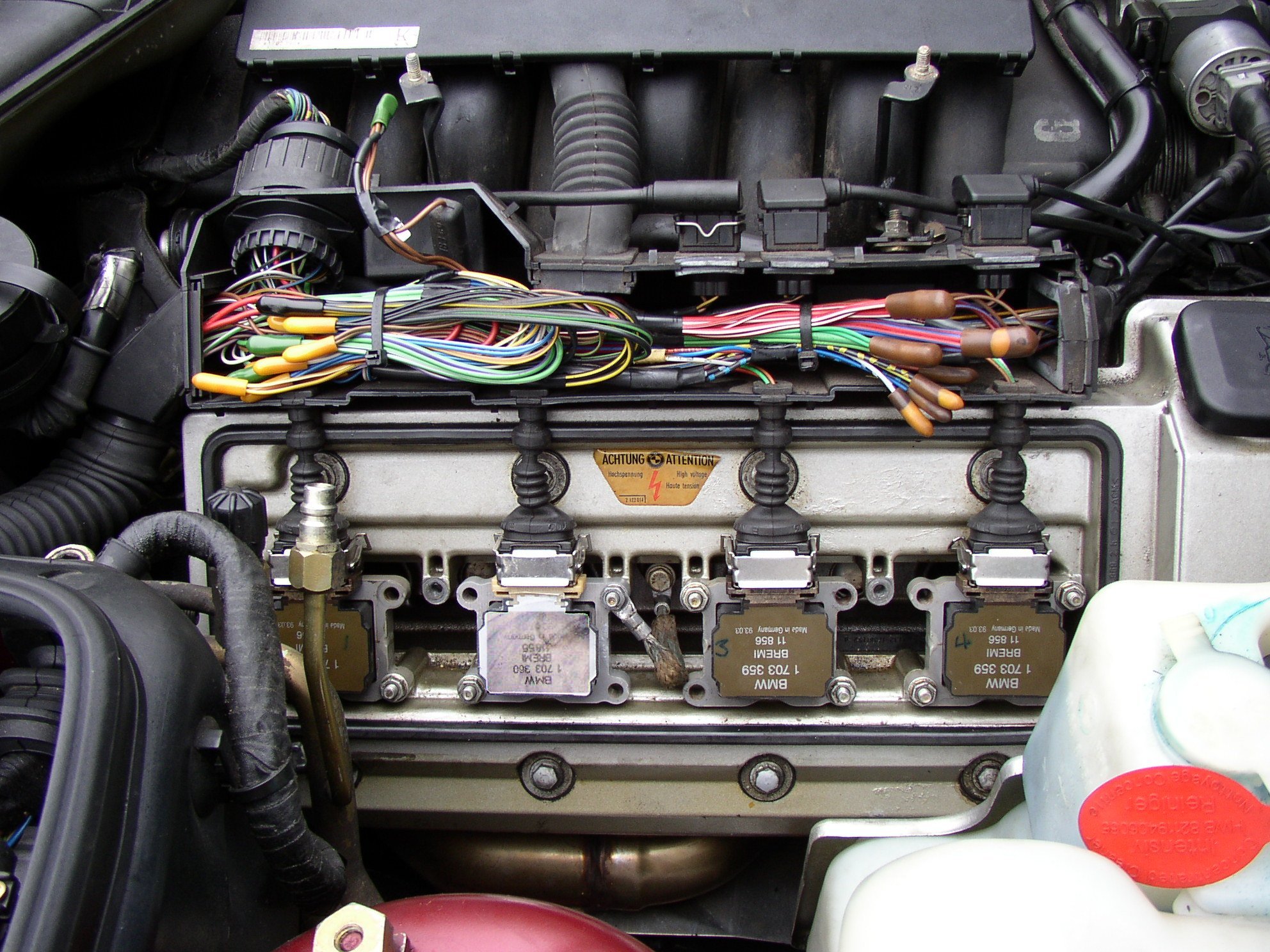

There's quite a lot of wiring above the cylinder banks on the V8's


Timm's BMW E32 7-Series 730i V8 M60


I sold this car to a dealer in exchange for an E38 735i ...... The worst 7-Series I ever owned
